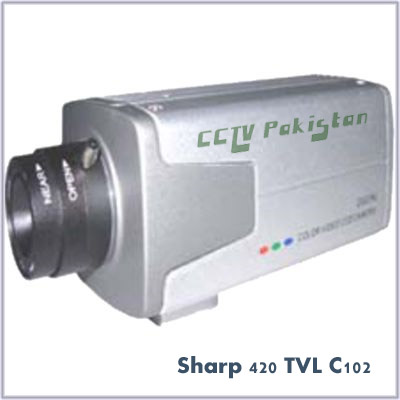

C102 420 TVL Sharp Box Camera

low cost box cctv camera in pakistan





MODEL
CCTV Pakistan C102
Image Sensor
1/4″ Sharp Color CCD
Horizontal Resolution
420TV Lines
Signal System
PAL/NTSC
Picture Pixels
PAL: 500(H) X 582(V)                              NTSC: 510(H) X 492(V)
Sync System
Internal Synchronization
S/N Ratio
>48dB
Lens Control
Video/DC Drive
Electronic Shutter
PAL: 1/50 -1/100,000 Sec                       NTSC: 1/60 -1/100,000 Sec
Gamma Collection
r=0.45
White Balance
ON/OFF
BLC
Disabled
AGC
Disabled
Minimum Illumination
1.5Lux/F1.2
Video Output
1.0Vp-p, 75Ω
Power Supply
DC12V +/- 20% (Dual power DC12V/AC24V is optional)
Operation Temperature
-10°C~+50°C
Dimension
48mm x 58mm x 119mm
Net Weight
380g
MODEL
TWD-C002P
Image Sensor
1/4″ Sharp Color CCD
Horizontal Resolution
420TV Lines
Signal System
PAL/NTSC
Picture Pixels
PAL: 500(H) X 582(V)                              NTSC: 510(H) X 492(V)
Sync System
Internal Synchronization
S/N Ratio
>48dB (AGC OFF)
Lens Control
Video/DC Drive
Electronic Shutter
PAL: 1/50 -1/100,000 Sec                       NTSC: 1/60 -1/100,000 Sec
Gamma Collection
r=0.45
White Balance
ON/OFF
BLC
ON/OFF
AGC
ON/OFF
Minimum Illumination
1.5Lux/F1.2
Video Output
1.0Vp-p, 75Ω
Power Supply
DC12V +/- 20% (Dual power DC12V/AC24V is optional)
Operation Temperature
-10°C~+50°C
Dimension
48mm x 58mm x 119mm
Net Weight
380g
