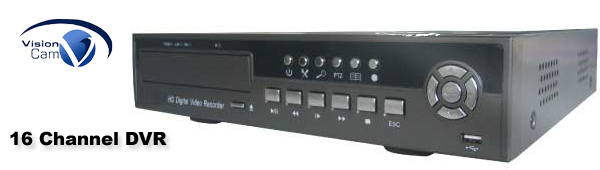

VC 1116

Model: VC 1116

System

Format H.264 main profile
Master processor Technical grade embedded micro controller
O.S. Embedded Linux operation
System resources Multichannel real-time recording, playback,multi
users network ops, simultaneously.
USB backup output.

Interface

Operation interface 16bit true color graphical operation interface,
support mouse operation.
Picture display 1/4/8/9/16frame

Video

Video standard PAL (625TVLine, 50fps);NTSC(525TVLine,60fps)
Monitoring quality PAL, D1 (704×576); NTSC, D1 (704×480)
Playback quality PAL, CIF (352×288); NTSC, CIF (352×240)
(real-time)

Code capacity CIF: 400FPS PAL, 480fps NTSC;
D1: 50fps PAL, 60 fps NTSC;
3ch x25fps CIF, 1ch x 25FPS D1
Motion detection 192（16×12）surveyed area can be set in
everyone frame; Multilevel sensitivity can be
set.

Audio

Audio compression G711A
VoIP Yes

Recording and playback

Recording mode Manual/alarm/motion detection/timing
Local playback Single channel, multi channel (max 16 channel
simultaneously)
Recording search Time point, calendar, event, channel

Storage and back up

Occupation HDD
space in everyone channel Audio: 28.8Mbyte/ hour + video:
25~450Mbyte/hour
Record storage Local HDD, and network

Hardware Interface:

Video input 16 channel BNC
Video output 1channel BNC, 1.0Vp-p, 75 ohm, 1channel
VGA output
SD card No （some model only）
Audio input 4channel RCA, 200-2800mV, 30K ohm
Audio output 1channel RCA, 200-3000mV, 5K ohm
Alarm input No 4 Channel
Alarm output 1 Channel
Network RJ45 10M/100M self-adapting Ethernet
port, I.E. viewing, and supports Windows
mobile, Symbian, iPhone and Black Berry
and Google cell phone viewing; also
Central Management System (CMS)
PTZ 1 x RS485
USB 2 x USB interface
HDD 2 x SATA (1x HDD,1xDVD-R/RW)

Others:

Power 12V/4.15A external adaptor
Dissipation Working temperature 0 degree +- 55 degree
Working humidity 10% -90 %
Dimension Color box: 410*415*135mm,
DVR 350*332*70 mm
Carton 555*425*430, 4pcs/carton
Weight 4.5KG/carton
Support languages English, French, Chinese , Portugal,
Russia, Italian, Spanish, Thai, Greek,
Japanese, German, Turkish, Polski, Finnish
and Farsi.
